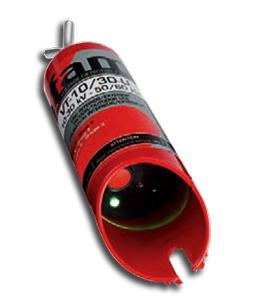

IEC Electronic Voltage Detector - Medium Voltage - Optical & Acoustic
IEC Electronic Voltage Detector - Medium Voltage - Optical & Acoustic

IEC Electronic Voltage Detector - Medium Voltage - Optical & Acoustic

HV/EHV Safety Tools

Description:

  • New technology Optical & Acoustic
  • Range Voltage from 3 to 66 kV; Varian model based on range voltage
  • 100% isolated from interferences from electromagnetic field
  • Freedom of movement _ Perfect detection at any angle
  • 100% isolated from interferences from electromagnetic field
  • Long life battery
  • Supplied in a rigid plastic box with battery included.
  • In accordance with IEC 61243-1:2003 + Amend 1:2009

Share Product

Product Information

SOFAMEL S.L. is a Spanish manufacturer dedicated to the production of electrical material of connection, as well as safety and electric protection material. Over 40 years experience in the electrical sector, the companys philosophy is based on covering clients needs in connection material and electrical safety, offering one of the most comprehensive ranges available in todays market.

Technical Specifications

Technical Specifications Description
Specification
  • Frequency 50/60 Hz
  • Rated Voltage from 63kV to 420kV
  • Electronic voltage detector by micro controller.
  • New advanced acquisition by pulse of light that makes direct contact detection and ensure a safe indication even conflicting electric field environments.
  • Work temperature range: from -25°C to +55°C.
  • Self-checking device for its complete circuit.
  • Self-ignition when voltage presence.
  • Auto-turn into sleep mode after two minutes of voltage absence.
  • Less than 1μA consumption in this mode.
  • Indication of voltage presence by means of high luminosity red LED and high acoustic pressure buzzer.
  • Indication of voltage absence by means of high luminosity green LED.
  • Power supply 9V alkaline battery, type 6LR61.
  • Indoor and outdoor use by appropiate insulating pole to the voltage detector.
  • End fitting to the pole by Universal type.
