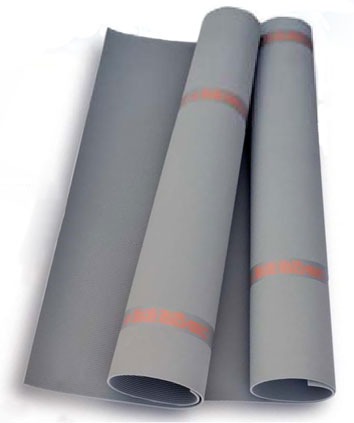

Insulating Mat Mod.AD
Insulating Mat Mod.AD
Insulating Mat Mod.AD
Insulating Mat Mod.AD

Insulating Mat Mod.AD

HV/EHV Safety Tools

Description:

  • Material Natural Rubber SBR
  • Resistance to tearing 25 Kg/cm2
  • According to IEC 61111
  • Various dimension from ( 0.6m x 0.6m) up to (1.2m x 10m)

Share Product

Product Information

SOFAMEL S.L. is a Spanish manufacturer dedicated to the production of electrical material of connection, as well as safety and electric protection material. Over 40 years experience in the electrical sector, the companys philosophy is based on covering clients needs in connection material and electrical safety, offering one of the most comprehensive ranges available in todays market.

Technical Specifications

Technical Specifications Description
Work Voltage (kV)

Dimensions (m) / Class / Thickness (mm)/ Weight (kg)

17.000
0.6 x 0.6/ 2  / 3mm / 1.2kg
0.6 x 1.0 / 2 / 3mm / 2 kg
0.6 x 10 / 2 / 3mm / 19.5 kg
1.0x 1.0 / 2 / 3mm / 3.3 kg
1.0 x 10 / 2 / 3mm / 33 kg
1.2 x 1.0 / 2 / 3mm/ 3.9 kg
1.2 x 10 / 2 / 3mm / 39 kg
26.500
0.6 x 0.6 / 3 / 3.5mm / 1.7 kg
0.6 x 1.0/ 3 / 3.5mm / 2.8 kg
0.6 x 10 / 3 / 3.5mm / 27.5 kg
1.0 x 1.0 / 3 /3.5mm / 4.6 kg
1.0 x 10 / 3 / 3.5mm / 46 kg
1.2 x 1.0 / 3 / 3.5mm/ 5.5 kg
1.2 x 10 / 3/ 3.5mm/55 kg
36.000
0.6 x 0.6 / 4/ 4.5mm / 2.2kg
0.6 x 1.0 / 4/ 4.5/ 3.7 kg
0.6 x 10 / 4/ 4.5mm / 36.5kg
1.0 x 1.0/ 4/4.5mm / 6.1 kg
1.0 x 10 / 4 / 4.5mm/ 61 kg
1.2 x 1.0/ 4 /4.5mm/ 7.3 kg
1.2 x 10 / 4 / 4.5mm / 73kg
