Earthing & Short Circuit Equipment - High Voltage Overhead Lines - PATL-TML
Earthing & Short Circuit Equipment - High Voltage Overhead Lines - PATL-TML
Earthing & Short Circuit Equipment - High Voltage Overhead Lines - PATL-TML
Earthing & Short Circuit Equipment - High Voltage Overhead Lines - PATL-TML

Earthing & Short Circuit Equipment - High Voltage Overhead Lines - PATL-TML

HV/EHV Safety Tools

PATL-TML

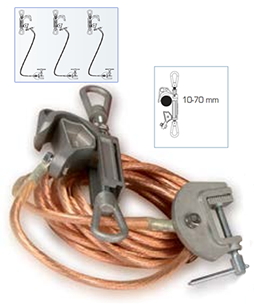

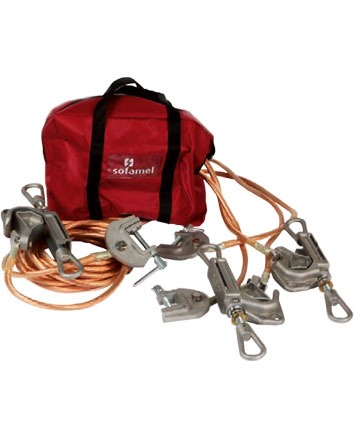

Composed of :

  • 3 TML aluminium alloy clamps by screw.
  • 3 copper cables with PVC insulation.
  • 3 TT-50 self-milling earth lathe.
  • 3 nylon bags to store and transport the equipment
  • Short circuit current Max ICC: 12 kA/1s, 19 kA/1s, 25 kA/1s, 30 kA/1s
  • In accordance with IEC 61230 standard

Share Product

Product Information

SOFAMEL S.L. is a Spanish manufacturer dedicated to the production of electrical material of connection, as well as safety and electric protection material. Over 40 years experience in the electrical sector, the companys philosophy is based on covering clients needs in connection material and electrical safety, offering one of the most comprehensive ranges available in todays market.

Technical Specifications

Technical Specifications Description
Short circuit current Max. ICC

Length (m2) / Cable Section(mm2)

12 kA/1s
6 / 50 mm2
7 / 50 mm2
8 / 50 mm2
9 / 50 mm2
10 / 50 mm2
19 kA/1s
6 / 70 mm2
7 / 70 mm2
8 / 70 mm2
9 / 70 mm2
10 / 70 mm2
25 kA/1s
6 / 95 mm2
7 / 95 mm2
8 / 95 mm2
9 / 95 mm2
10 / 95 mm2
30 kA/1s
6 /120 mm2
7 / 120 mm2
8 / 120 mm2
9 / 120 mm2
10 / 120 mm2
