Earthing & Short Circuit Equipment MV - PATC-MPU
Earthing & Short Circuit Equipment MV - PATC-MPU
Earthing & Short Circuit Equipment MV - PATC-MPU
Earthing & Short Circuit Equipment MV - PATC-MPU

Earthing & Short Circuit Equipment MV - PATC-MPU

HV/EHV Safety Tools

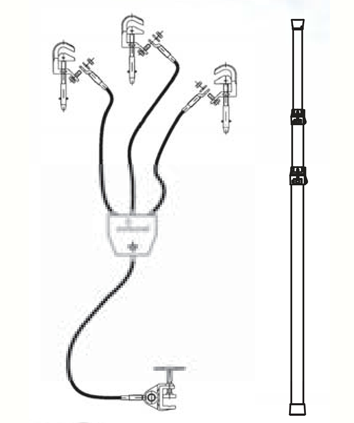

PATC-MPU Medium Voltage Substation

Composed of :

  • 3 MPU Aluminium alloy clamps by screw tighten & bayonet.
  • 3 copper cables with PVC insulation.
  • 3 TT-38 self-milling earth lathe.
  • 1 plastic case to store and transport the equipment
  • Short circuit current Max ICC: 6.9 kA/1s, 9 kA/1s, 12 kA/1s
  • In accordance with IEC 61230 standard

Share Product

Product Information

SOFAMEL S.L. is a Spanish manufacturer dedicated to the production of electrical material of connection, as well as safety and electric protection material. Over 40 years experience in the electrical sector, the companys philosophy is based on covering clients needs in connection material and electrical safety, offering one of the most comprehensive ranges available in todays market.

Technical Specifications

Technical Specifications Description
Code // Ref.

Short circuit current Max. ICC

665220 // PATC-MPUB/2525

6.9 kA/1s

665225 // PATC-MPUB/3535

9.0 kA/1s

665230 // PATC-MPUB/5050

12.0 kA/1s

665235 // PATC-MPUB/2525

6.9 KA/1s

665240 // PATC-MPUB/3535

9.0 KA/1s

665245 // PATC-MPUB/5050

12.0 KA/1s
