PATL-MPUB Medium Voltage Overhead Lines

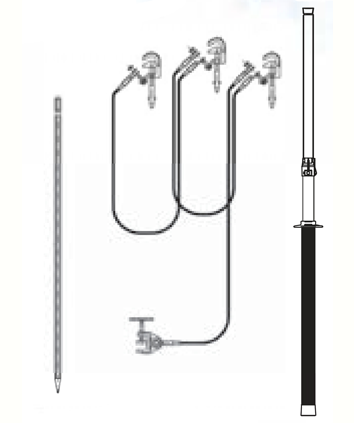

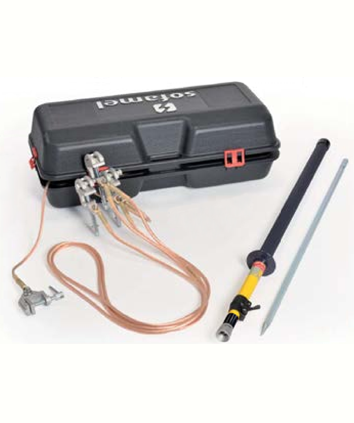

Composed of :

  • 2 MPU aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between 4 and 30 mm, flat bars max.45 mm, bending bus-bars max.45 mm and fixing points, between 20 and 25 mm.
  • 1 MPUP aluminium alloy clamp (carrier) with screw tighten for cylindrical conductors with diameter between 4 and 30 mm, flat bars max. 45 mm, depending on model, bending bus-bars max. 45 mm and fixing points between 20 and 25 mm.
  • 2 copper cables with PVC insulation of 16/25/35 mm section depending on model and 2,5 m long.
  • 1 copper cable with PVC insulation of 16/16/25 mm2 section depending on model and 15 m long.
  • 1 TT-38A milling earthing lathe.
  • 1 earthing rod.
  • 1 telescopic pole (1,15 m folded and 2 m extended) with anchorage button.
  • 1 plastic case to store and transport the equipment.
  • 1 bag to store and transport the pole and the earthing rod.

Share Product

Product Information

SOFAMEL S.L. is a Spanish manufacturer dedicated to the production of electrical material of connection, as well as safety and electric protection material. Over 40 years experience in the electrical sector, the companys philosophy is based on covering clients needs in connection material and electrical safety, offering one of the most comprehensive ranges available in todays market.

Technical Specifications

Technical Specifications Description
Code // Ref.

Short circuit current Max. ICC

660290 // PATK-MPUB/1616

4.0 kA/1s

660300 // PATL-MPUB/2516

6.9 kA/1s

660310 // PATL-MPUB / 3525

9.0kA/1s
