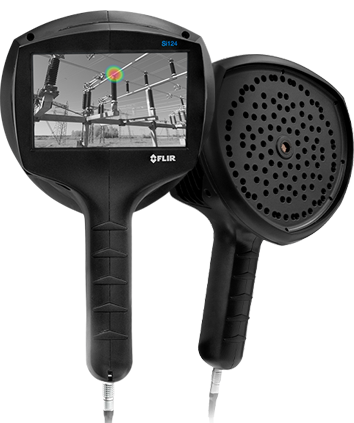

FLIR Si124 - Industrial Acoustic Imaging Camera
FLIR Si124 - Industrial Acoustic Imaging Camera
FLIR Si124 - Industrial Acoustic Imaging Camera
FLIR Si124 - Industrial Acoustic Imaging Camera
FLIR Si124 - Industrial Acoustic Imaging Camera
FLIR Si124 - Industrial Acoustic Imaging Camera

FLIR Si124 - Industrial Acoustic Imaging Camera

UV Corona Camera

FIND LEAKS 10X FASTER
Reduce electricity waste and optimize equipment performance

  • Pinpoint costly leaks in noisy industrial environments
  • Instantly view the leak rate (l/min or CFM) and estimated yearly energy loss
  • Extend compressor life by eliminating wasted output

SEE THE SOUND OF PD AND CORONA
Minimize equipment failures and downtime that result from PD/corona issues

  • Classify partial discharge type (including surface discharge, floating discharge, and discharge into air) to improve reliability of electrical systems
  • Identify corona discharge, even in the daytime, allowing quick replacement of defective components before a catastrophic failure
  • Operate the lightweight camera with one hand

Share Product

Product Information

The FLIR Si124 acoustic imaging camera can help you locate pressurized leaks in compressed air systems or detect partial discharge from high-voltage electrical systems. This lightweight, one-handed solution can be used to identify issues up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124 produces a precise acoustic image that visually displays ultrasonic information, even in loud industrial environments. The acoustic image is transposed in real time on top of a digital camera picture, which allows you to accurately pinpoint the source of the sound. Equipped with the FLIR Acoustic Camera Viewer cloud service, this smart tool automatically saves images to the cloud after they’re captured. Then you can access stored files and separate sound sources for deeper analysis and classification of problems. Through a regular maintenance routine, the FLIR Si124 can help facilities save money on utility bills and delay the expense of installing new compressors.

Technical Specifications

Technical Specifications Description
Display

Size: 5 in 800 × 480 Color: 24 bit RGB Brightness: 1000 cd/m2 (adjustable)

Dynamic Range

Over 120 dB

Packaging Size

40 × 40 × 35 cm (15.7 × 15.7 × 13.8 in)

Size

273 × 170 × 125 mm (10.7 × 6.7 × 4.9 in)

Weight

Camera: 980 g (2.2 lb)

Acoustic Measurement

124 low-noise MEMS microphones, real-time sound visualization

Discharge Classification
  • Discharge into air
  • Surface discharge
  • Floating discharge
Distance

From 0.3 m (1.0 ft) up to 100 m (328 ft)

Leak Rate

In typical industrial environment:

  • >0.032 l/min @ 3 bar from 3 m (9.8 ft)
  • >0.05 l/min @ 3 bar from 10 m (32.8 ft).
  • Absolute minimum detection in quiet environment: 0.016 l/min @ 1.2 bar from 0.3 m (1.0 ft)
Wireless Data Transfer

Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN

Bandwidth

2 kHz to 35 kHz, adjustable range

Video Frame Rate

25 fps

Video Image Resolution

1640 × 1234

Battery Cord Length

0.9 m (3 ft), extended 2 m (6.6 ft)

Input Device

Resistive touchscreen

Total Weight [Including All Accessories]

2.9 kg (6.4 lb)
