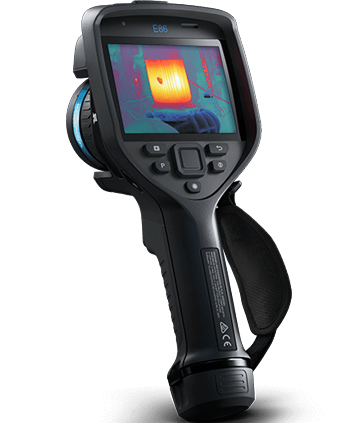

FLIR E86
FLIR E86

FLIR E86

Thermal Imaging Infrared Camera

The FLIR E86 is packed with the high-performance features needed for fast, accurate detection of hot spots and hidden deficiencies. This 464 × 348 pixel thermal camera has an expanded temperature measurement range for easier detection of hot spots and hidden anomalies on electrical and mechanical assets. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, while FLIR imaging technology such as UltraMax® and MSX® ensure crisp, vibrant thermal images. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.

Share Product

Product Information

FLIR Systems is the world leader in the design, manufacturing and marketing of thermal imaging systems for a wide variety of commercial, industrial and government applications. FLIR Systems' thermal imaging systems use state-of-the-art infrared imaging technology that detects infrared radiation or heat. Based on detected temperature differences, thermal imaging cameras can create a crisp image. Complicated algorithms make it also possible to read correct temperature values from this image. FLIR designs and manufactures all the critical technologies inside their products, including detectors, electronics, and special lenses themselves.

Technical Specifications

*Please Contact us for more detail

Technical Specifications Description
Accuracy

±2°C (±3.6°F) or ±2% of the reading

Accuracy [Drift] in Screen EST Mode

Accuracy (drift): ±0.3°C (±0.5°F)

Area measurement information

Yes

Area measurement information

Yes

Battery operating time

>2.5 hours at 25°C (68°F) and typical use

Color palettes

Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Communication Interfaces

USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Detector Type and Pitch

Uncooled microbolometer, 17 µm

Digital Camera

5 MP, with built-in LED photo/video lamp

Digital Zoom

1-4× continuous

Display

4", 640 × 480 pixel touchscreen LCD with auto-rotation

f number

1.3

Filter_UltraMax

Yes

FLIR Inspection Route

Enabled in camera

Focus

Continuous LDM, One-shot LDM, One-shot contrast, Manual

Global Positioning System [GPS]

Automatic image tagging

Image Frequency

30 Hz

Image Sketch

From touchscreen, on infrared image only

IR Resolution

464 × 348 pixels

Laser Distance Meter

Yes; dedicated button

Laser Pointer

Yes

Minimum Focus Distance

0.15 m

Object Temperature Range
  • -20 to 120°C (-4 to 248°F)
  • 0 to 650°C (32 to 1202°F)
  • 300 to 1500°C (572 to 2732°F)
Operating Temperature Range

-15 to 50°C (5 to 122°F)

Operating Temperature Range

-15 to 50°C (5 to 122°F)

Sampling Average in Screen EST Mode

Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature

Screen EST Mode

Yes

Spectral Range

7.5-14 µm

Spot Meter

3 ea. in live mode

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Thermal Sensitivity_NETD

<40 mK at 30°C (86°F)

Time Lapse

10 seconds to 24 hours (infrared)

UltraMax

Yes
