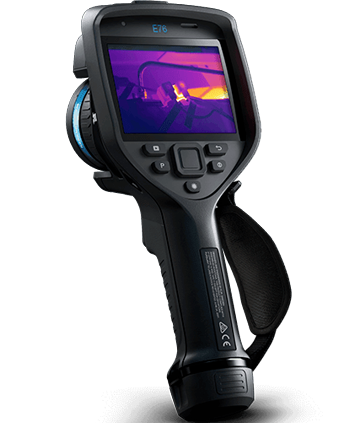

FLIR E76
FLIR E76

FLIR E76

Thermal Imaging Infrared Camera



The FLIR E76 offers complete coverage of near and distant targets through a range of interchangeable AutoCal™ lenses, with fields of view for everything from wide-angle roof inspections to electrical inspections performed from a safe distance. A step up from the FLIR E54, the E76 includes an optional temperature range to 1000°C (1832°F), laser-assisted autofocus, and 3 area measurement boxes. The 320 × 240 thermal resolution produces crisp, vibrant imagery that can be enhanced with patented FLIR MSX® technology for added detail and perspective. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.

Share Product

Product Information

FLIR Systems is the world leader in the design, manufacturing and marketing of thermal imaging systems for a wide variety of commercial, industrial and government applications. FLIR Systems' thermal imaging systems use state-of-the-art infrared imaging technology that detects infrared radiation or heat. Based on detected temperature differences, thermal imaging cameras can create a crisp image. Complicated algorithms make it also possible to read correct temperature values from this image. FLIR designs and manufactures all the critical technologies inside their products, including detectors, electronics, and special lenses themselves.

Technical Specifications

*Please Contact us for more detail

Technical Specifications Description
Accuracy

±2°C (±3.6°F) or ±2% of the reading

Accuracy [Drift] in Screen EST Mode

Accuracy (drift): ±0.3°C (±0.5°F)

Area measurement information

No

Battery operating time

>2.5 hours at 25°C (68°F) and typical use

Color palettes

Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Communication Interfaces

USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Detector Type and Pitch

Uncooled microbolometer, 17 µm

Digital Camera

5 MP, with built-in LED photo/video lamp

Digital Zoom

1-4× continuous

Display

4", 640 × 480 pixel touchscreen LCD with auto-rotation

f number

1.3

Filter_UltraMax

Yes

FLIR Inspection Route

Enabled in camera

Focus

Continuous LDM, One-shot LDM, One-shot contrast, Manual

Global Positioning System [GPS]

Automatic image tagging

Image Frequency

30 Hz

IR Resolution

320 × 240 pixels

IR Resolution

320 × 240 pixels

Laser Distance Meter

Yes; dedicated button

Laser Pointer

Yes

Laser Pointer

Yes

Measurement Presets

No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Minimum Focus Distance

0.15 m

Object Temperature Range
  • -20 to 120°C (-4 to 248°F)
  • 0 to 650°C (32 to 1202°F)
  • Optional 300 to 1000°C (572 to 1832°F)
Operating Temperature Range

-15 to 50°C (5 to 122°F)

Sampling Average in Screen EST Mode

Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature

Screen EST Mode

Yes

Shock and Vibration and Encapsulation

25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529)

Spectral Range

7.5-14 µm

Spot Meter

3 ea. in live mode

Storage Media

Removable SD card

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Text

Predefined list or touchscreen keyboard

Text

Predefined list or touchscreen keyboard

Thermal Sensitivity_NETD

<40 mK at 30°C (86°F)

Time Lapse

No

UltraMax

Yes
