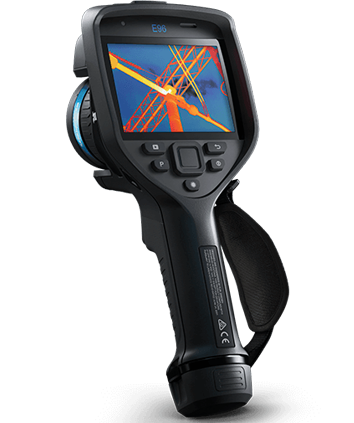

FLIR E96
FLIR E96

FLIR E96

Thermal Imaging Infrared Camera

The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations.

Share Product

Product Information

FLIR Systems is the world leader in the design, manufacturing and marketing of thermal imaging systems for a wide variety of commercial, industrial and government applications. FLIR Systems' thermal imaging systems use state-of-the-art infrared imaging technology that detects infrared radiation or heat. Based on detected temperature differences, thermal imaging cameras can create a crisp image. Complicated algorithms make it also possible to read correct temperature values from this image. FLIR designs and manufactures all the critical technologies inside their products, including detectors, electronics, and special lenses themselves.

Technical Specifications

*Please Contact us for more detail

Technical Specifications Description
Display

4", 640 × 480 pixel touchscreen LCD with auto-rotation

FLIR Inspection Route

Enabled in camera

FLIR Screen-EST Mode

Yes

Sampling Average in Screen-EST Mode

Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature

Time Lapse

10 seconds to 24 hours (infrared)

Voice

60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®

Weight & Dimensions (without lens)

1 kg, 278.4 × 116.1 × 113.1 mm

Operating Temperature Range

-15 to 50°C (5 to 122°F)

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Color Palettes

Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Detector Type and Pitch

Uncooled microbolometer, 12 µm

Digital Camera

5 MP, with built-in LED photo/video lamp

Digital Zoom

1-8× continuous

f-number

1.3

Focus

Continuous LDM, One-shot LDM, One-shot contrast, Manual

Global Positioning System [GPS]

Automatic image tagging

Image Frequency

30 Hz

Image Sketch

From touchscreen, on infrared image only

IR Resolution

640 × 480 pixels

Lens Identification

Automatic

Minimum Focus Distance

0.15 m

Spectral Range

7.5-14 µm

Thermal Sensitivity/NETD

<40 mK at 30°C (86°F)

UltraMax

Yes

Accuracy

±2°C or ±2% of the reading

Accuracy [Drift] in Screen-EST Mode

Accuracy (drift): ±0.3°C (±0.5°F)

Area measurement information

Yes

Laser Distance Meter

Yes; dedicated button

Measurement Presets

No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Object Temperature Range
  • -20 to 120°C
  • 0 to 650°C
  • 300 to 1500°C
Spot Meter

3 ea. in live mode

Battery operating time

>2.5 hours at 25°C (68°F) and typical use

Battery Type

Rechargeable Li-ion battery

Battery Type

Rechargeable Li-ion battery
