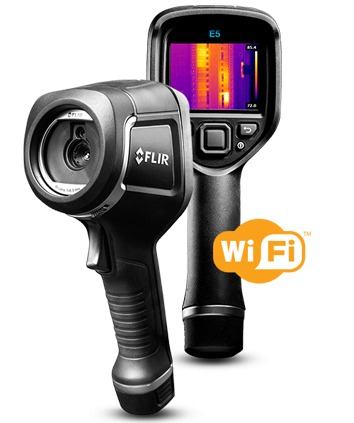

FLIR E5-XT

Thermal Imaging Infrared Camera

INFRARED CAMERA WITH MSX® & WI-FI

Uncooled microbolometer
160 × 120 pixels
Infrared camera
Hard transport case
Battery (inside camera)
USB cable
Power supply/charger with EU, UK, US and Australian plugs
Printed documentation
Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Set-up Commands Local adaptation of units, language, date and time formats
Spectral Range 7.5–13 µm

Product Information

FLIR E5-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 19.200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.

Technical Specifications

Technical Specifications	Description
Camera size (L x W x H)	244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery	0.575 kg (1.27 lb.)
Color	Black and gray
Color palettes	Black & white, iron, and rainbow
f-number	1.5
Field of view (FOV)	45° × 34°
Focus	Focus free
Image Adjustment	Automatic adjust/lock image
Image Frequency	9 Hz
Image Modes	Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Minimum Focus Distance	0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging (MSX)	IR image enhanced with visible camera detail
Picture-in-Picture	IR area on visual image
Spatial resolution (IFOV)	5.2 mrad
Digital Camera Resolution/FOV	640 × 480/55° × 43°
