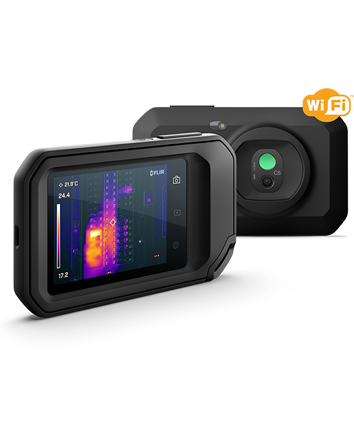

Compact Thermal Camera

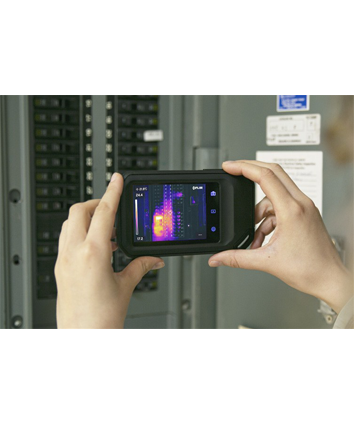

With the FLIR C5 in your pocket you’ll be ready anytime to find hot fuses, air leaks, plumbing issues, and more. Identifying hidden problems is easy with the 160 x 120 (19,200 pixels) true thermal imager, MSX® (Multi-Spectral Dynamic Imaging), 5-megapixel visual camera, and LED flashlight. The C5 directly uploads and stores your images to the FLIR Ignite™ cloud, where you can organize and back up files. Then instantly share images with customers or create professional reports that document the problem and required repairs.
FLIR Systems is the world leader in the design, manufacturing and marketing of thermal imaging systems for a wide variety of commercial, industrial and government applications. FLIR Systems' thermal imaging systems use state-of-the-art infrared imaging technology that detects infrared radiation or heat. Based on detected temperature differences, thermal imaging cameras can create a crisp image. Complicated algorithms make it also possible to read correct temperature values from this image. FLIR designs and manufactures all the critical technologies inside their products, including detectors, electronics, and special lenses themselves.
Technical Specifications | Description |
---|---|
Camera size (L x W x H) | 138 x 84 x 24 mm |
FLIR Screen-EST Mode | No |
IR Sensor | 160 x 120 (19,200 pixels) |

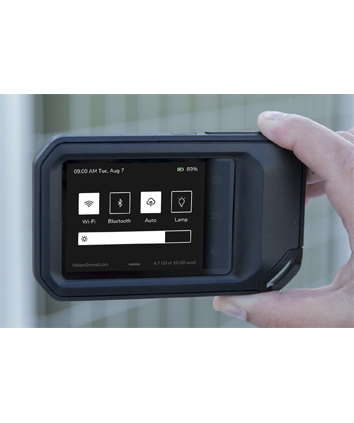

Touchscreen | Capacitive touch |
Image Upload | Directly upload images to FLIR Ignite cloud library and services |
Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
Encapsulation | Camera housing and lens: IP54 (IEC 60529) |
Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
Digital Camera | 5 MP |
Digital Camera Focus | Fixed focus |
Gallery | Thumbnails and custom folder structure |
Image Adjustment | Automatic level and span, Manual level and span, 1-Touch Level/Span |
Image Frequency | 8.7 Hz |
Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
Minimum Focus Distance | Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in) |
Spectral Range | 8 to 14 µm |
Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3% |
Measurement Functions | Spot, Box with max./min. |
Measurements correction | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
Object Temperature Range | -20 to 400°C (-4 to 752°F) |
Thermal Sensitivity | <70 mK |
Screen Size | 3.5 in |
Weight [including battery] | 0.19 kg |
Battery operating time | 4 hours |
Battery type | Rechargeable built-in Lithium ion battery |
File Formats | Standard JPEG, 14-bit measurement data included |
Image Storage | >5000 images |
