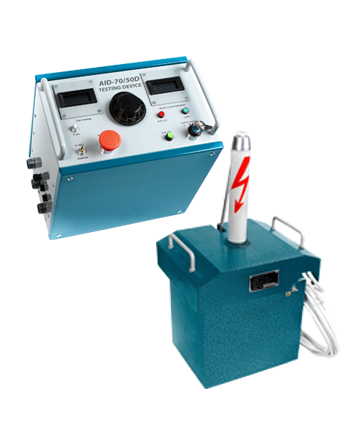

Insulation Testing Device AID-70/50 (D)
Insulation Testing Device AID-70/50 (D)

Insulation Testing Device AID-70/50 (D)

High Voltage Test & Diagnostics

High-voltage testing device AID-70/50 and AID-70/50D (hipot) are designed for:

  • Insulation testing of high voltage cables with rectified voltage up to 70 kV DC and nonliquid dielectrics (switchgears, arresters, insulators, dischargers, reclosers, busbars etc.)
  • AC voltage up to 50 kV and DC voltage up to 70 kV.

Share Product

Product Information

Established only in 2005, DET (DneproEnergoTechnologii Ltd) already achieved significant results in manufacturing high voltage, high current testing and measuring equipment, equipment for cable fault location, insulating liquids testers for years, becoming a regional leader. Their clients are: energy generation and distribution companies, power plants, power utility companies and substations. Company DneproEnergoTechnologii (DET) practices individual approach to each client, dealer, representative and partner. They are in professional relationships with all their customers due to close cooperation and responsible approach to business. During the years DET accumulated vast experience in production many kinds of equipment for customers from Europe, Asia and Africa.

Technical Specifications

Technical Specifications Description
Parameter

AID-70/50D

Output voltage type

DC cont/ AC cont/ AC short

Max output voltage, kV

70/ 50/ 50

Max output current, mA

14/ 30/ 45

Output voltage measuring range, kV

0.5-70 / 0.5-50

Output current measuring range, mA

0-14 / 0-45

Current that triggers overcurrent protection, mA, max

15 / 46

High voltage unit overcurrent protection limit, A

10

Digital indication

Yes

Supply Voltage

220 V +/- 22V, 50(60) Hz

Current and voltage measurement error, %

3 (of full reading)

Control unit weight, kg

11

High voltage unit weight, kg

44

Control unit dimensions, mm

315x220x365

High voltage unit dimensions, mm

360x286x670
