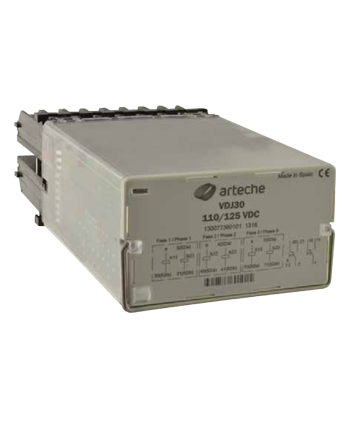

TRIP CIRCUIT SUPERVISION RELAYS
TRIP CIRCUIT SUPERVISION RELAYS
TRIP CIRCUIT SUPERVISION RELAYS
TRIP CIRCUIT SUPERVISION RELAYS

TRIP CIRCUIT SUPERVISION RELAYS

Auxiliary Relays

Description:

  • For single phase or three phase circuit breakers. Through a small supervision current the whole circuit is supervised, in both positions of the circuit breaker (open or closed).
  • The correct state of the circuit is showed with a green LED on the front plate of the relay. The output contacts change their position if the relay detects a failure in the continuity of the circuit.
  • The single phase trip circuit supervision relay can be manufactured with different LED indicator configurations.

Share Product

Product Information

The ARTECHE Group is an international benchmark in the development of solutions and electrical equipment in the Generation, Transmission, Distribution and Industry areas. Its technological and financial independence, more than 60 years experience and constant investments in R&D, technology, quality and training, enable its products to reach the highest levels of reliability in measurement, protection, control, communication fields and power quality. ARTECHE offers a wide range of relays specially designed to be used in circuit breaker tripping applications.

  • Interface between protection and control equipments and HV and/or MV circuit breakers, eliminating risks in case of internal failure of the circuit breaker.
  • Trip contacts multiplication, to operate directly on the circuit breaker and transmit the corresponding alarms in a minimum time.
  • Trip and lock-out, with electric or hand reset to avoid accidental closing of circuit breakers associated to power transformers, generators or machines.
  • The surveillance of the trip circuit, guarantees it is in perfect conditions to allow the trip when it is needed.
