AUXILIARY SUPPLY CIRCUIT SUPERVISION RELAYS
AUXILIARY SUPPLY CIRCUIT SUPERVISION RELAYS
AUXILIARY SUPPLY CIRCUIT SUPERVISION RELAYS
AUXILIARY SUPPLY CIRCUIT SUPERVISION RELAYS

AUXILIARY SUPPLY CIRCUIT SUPERVISION RELAYS

Auxiliary Relays

Description:

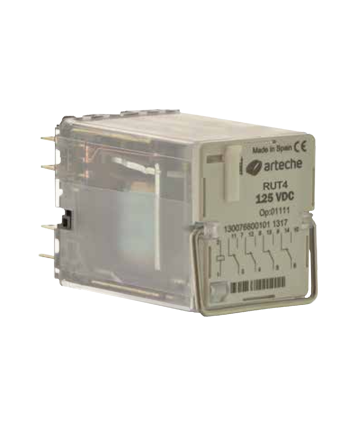

  • Auxiliary relay with four changeover contacts, aimed to supervise the failure of trip supply.
  • Connecting the relay across the trip circuit supply, the equipment is normally energized. Faults will occur when the trip voltage is lost, so the relay drops off in those cases, providing the related signs and alarms. In order to avoid faulty alarms due to instantaneous supply voltage dips, the drop off time of the relay is delayed over 100 ms so those non-permanent failures of trip supply would not be considered.
  • Auxiliary supply circuit supervision relays can be manufactured with different LED indicator configuration.

Share Product

Product Information

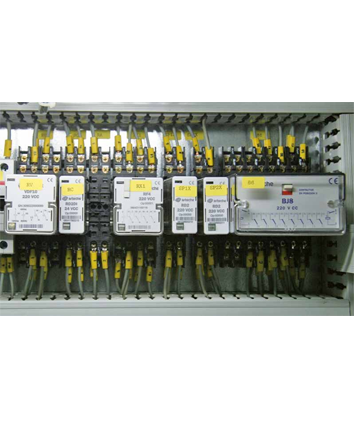

The ARTECHE Group is an international benchmark in the development of solutions and electrical equipment in the Generation, Transmission, Distribution and Industry areas. Its technological and financial independence, more than 60 years experience and constant investments in R&D, technology, quality and training, enable its products to reach the highest levels of reliability in measurement, protection, control, communication fields and power quality. ARTECHE offers a wide range of relays specially designed to be used in circuit breaker tripping applications.

  • Interface between protection and control equipments and HV and/or MV circuit breakers, eliminating risks in case of internal failure of the circuit breaker.
  • Trip contacts multiplication, to operate directly on the circuit breaker and transmit the corresponding alarms in a minimum time.
  • Trip and lock-out, with electric or hand reset to avoid accidental closing of circuit breakers associated to power transformers, generators or machines.
  • The surveillance of the trip circuit, guarantees it is in perfect conditions to allow the trip when it is needed.
