UAV Systems (UV & IR)

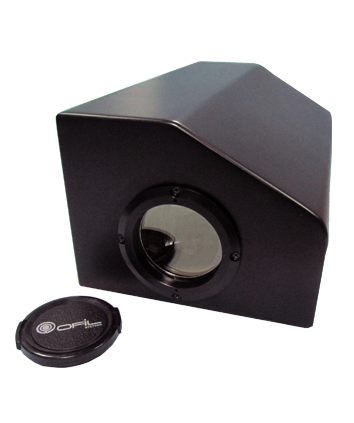

DayCor® ROMpact is a bi-spectral UVvisible block camera module with excellent scanning & corona detection capabilities that fit scanning high and medium voltage electrical installations.

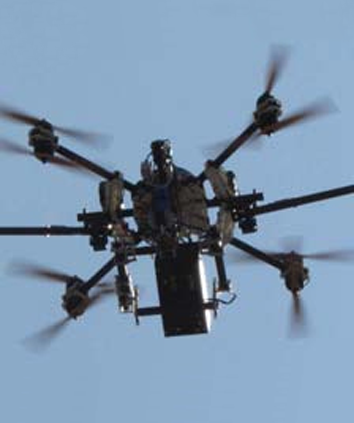

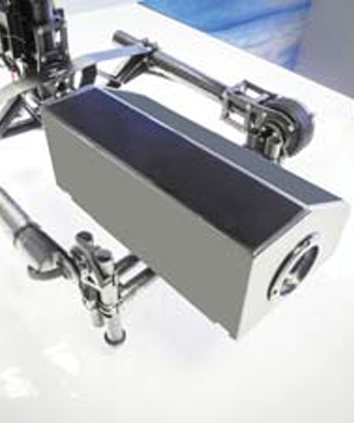

Due to its small size and low weight ROMpact can be installed in payloads of various sizes and shapes and in particular on UAS. ROMpact can also be mounted on fixed mounts and on a moving pan & tilt. ROMpact’s precision is attributed to the embedded DayCor® Technology, which guarantees high sensitivity to UV corona discharge.

ROMpact performs in daytime, records and transfers in real time pinpointed information of occurrences of corona PD and of electrical faults. ROMpact is attractive to systems with size and weight limitation and to systems that wish to incorporate multi spectral sensors.

Share Product

Technical Specifications

Technical Specifications Description
Sunlight Rejection

Absolute – at all sunlight and all weather conditions, target can be inspected  with the sun in the field of view

Minimum Discharge Detection

1pC @ 10 meters  (RWE certified: IEC 60270:2000) Tested & certified

Minimum RIV Detection

7.7dBμV (RIV) @1MHz @10m  (RWE Tested & certified: NEMA107-1987)

Minimum UV Sensitivity

1.9 x 10-18 watt/cm²

Focus Range

1.5m – Infinity

Zoom

10 optical x 12 digital (120 optical x digital)

Video output

NTSC | PAL standards

Communication

RS-232 (baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1/2 selectable)

Video Format

AVI

Digital Storage

Removable SD card

Weight

1.2kg
