Uvolle VX
Uvolle VX
Uvolle VX
Uvolle VX
Uvolle VX
Uvolle VX

Uvolle VX

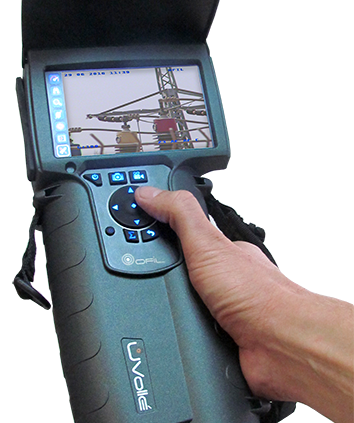

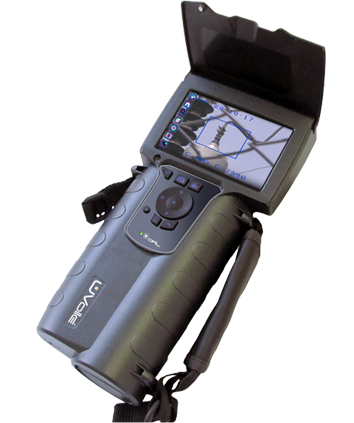

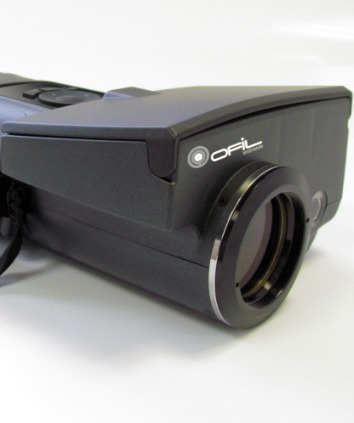

UV Corona Camera

Both video and stills capture.

Description:

  • Shoot Store & Playback Video And stills
  • RIV Sensivity 3.6 dBµV@ 1MHz @ 10m
  • Auto And Manual Focus
  • Continues Operation without over heating
  • Deluxe Reflective 5" LCD
  • Built-in Powerful LED flashlight
  • Corona event counting; IP 54
  • User Friendly
  • Size ( LxWxH) 29x13.6x8.5 cm; Weight 1.39 Kg

Share Product

Product Information

Ofil is the inventor and worldwide leader of daytime UV technology inspection. Ofil offers the lowest cost of entry to the daytime corona inspection world, and serves a wide range of applications in various market segments. Ofil holds an ISO certificate and its cameras are tested and certified by international testing laboratories. Ofils DayCor® product family provides solutions for maintenance in the electrical utility industry and petrochemical industries. UVollé-SX and UVollé-VX powerful handheld compact corona cameras offer an optimal combination of performance and affordable price. Being fully solar blind bi-spectral systems, these cameras allow detecting corona & arcing during daytime. Both models SX and VX fulfil scanning requirements of high and medium voltage electrical apparatuses such as: insulators, bushings, motors, generators, transformers, switchgears etc., used by mines, petroleum industries, data centers heavy industry, electrical utilities, workshops and others. In particular, these models perform well in darker rooms and cabinets due to the built-in led flashlight.

Technical Specifications

Technical Specifications Description
Discharge Detection

1pC @10m (RWE certified : DIN EN 60270)

RIV Sensitivity

3.6 dBµV @ 1 MHz @10m (RWE certifiead: NEMA 107-1987)

Image Mode

Visible/UV/Combine

Zoom

10x Optical, 12x Digital

Spectral Range

240-280nm

Storage Media

Removable SD card

Focus Range

0.9m to infinity

Media Capture

Video Capture & Playback

Battery Type

Li-Ion; 4 hours

Display

5" color sun readable TFT LCD WVGA ( 800x480 pixels)

Min Visible Light Sensitivity

0.1 Lux

Charging Systems

Internal with AC Adapter

Dimension (LxWxH)

29x13.6x8.5 cm // 1.39Kg
