HVIR.85
HVIR.85
HVIR.85
HVIR.85
HVIR.85
HVIR.85

HVIR.85

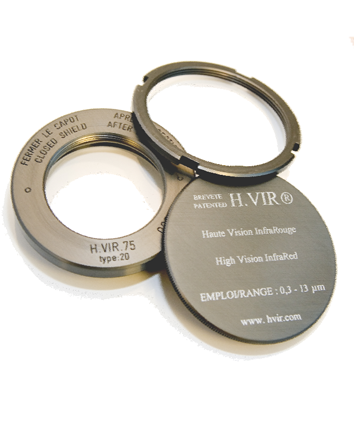

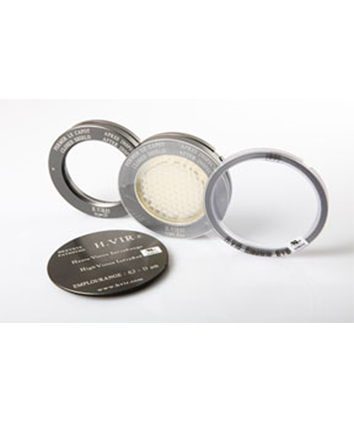

Infrared Window

Type 21

Description:

  • Ø Crystal 71mm
  • A Crystal clear optical window transparent to UV, Visible And IR radiations
  • IP 67 Qualification and UL type 3/12, electrical standard certification for outdoor
  • Good External Optic Transmission compensation above 70% up to 99%
  • No special key needed to open/close window cover
  • Easy to uninstall from abandoned or broken panel/compartment

Share Product

Product Information

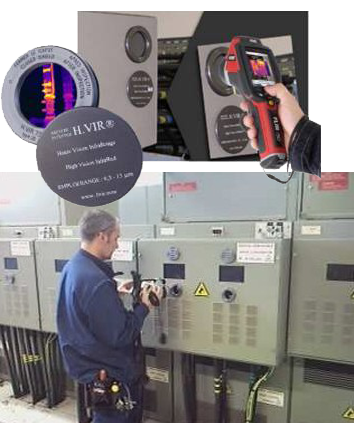

H.VIR SOREM is the first global manufacturer of patented Infrared windows dedicated to Predictive Maintenance (PdM) using Thermal Imaging IR Camera. H.VIR SOREM specialist in single crystal growth since 1953, and has developed in the 1990 a porthole revolutionary H.VIR®. The constraints imposed by infrared (IR) technology in the tightly regulated sector of preventive maintenance in electrical field, led H.VIR SOREM to create a complete selection of observation windows adapted to most configurations. The H.VIR® has become the only IR certified transparent interface that allows one to visualize on IR camera the temperature variations within a switch board cabinet without opening it nor without switching off the electricity supply.

Technical Specifications

Technical Specifications Description
Parameter

H.VIR® 85 type 21

Ø A

99 mm

Ø B**

71 mm

>Ø C

M88 x 2

D

14 mm

Standard version : 0 < E ≤4 mm

F = 10 mm

L1 version : 4 mm < E ≤8 mm

F = 15 mm

L2 version : 8mm < E ≤12 mm

F = 20 mm

Specification
  • ISO 9001-EN9100 certified
  • IP 67 Qualification and UL type 3/12, electrical standard certification for outdoor (IEC 60529 standards, water and dust penetration).
  • Pass NATA 50 kA/63kA Internal arcing fault test.
  • Pass other mandatory tests such as Vibration test, Gasket aging test, Compression test, Gasket oil immersion test, Hose test, Crushing resistance test, Accelerating-aging test, and Oxidation/Corrosion Behavior test.
  • A crystal clear optical window transparent to UV, visible and IR radiations and covering the wavelength of work (Ultraviolet (UV) Band, Visible Band, Infrared Band II (2μm - 5μm), and Infrared Band III (7μm - 13μm)).
  • Good external optic transmission compensation above 70% up to 99% (objects temperature @ 30°C to 160°C, while window temperature @ 16°C to 40°C)
  • No special key needed to open/close window cover (being able to be placed next to the window with its magnet during the inspection).
  • Easy to uninstall from abandoned or broken panel/compartment and reinstall to occupied or new panel/compartment without damaging the SOREM H.VIR® unit.
